logger_default_cr_api.h File Reference

Composition Root API for wiring the logger_default adapter. More...

#include "logger_default/cr/logger_default_types.h"
#include "logger/borrowers/logger_types.h"

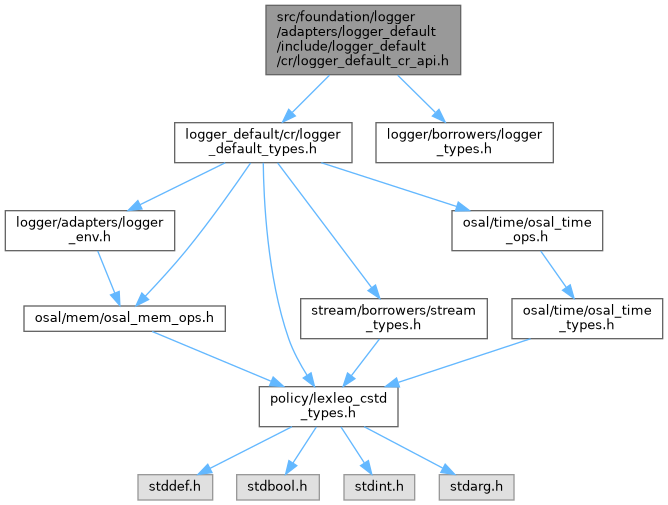

Include dependency graph for logger_default_cr_api.h:

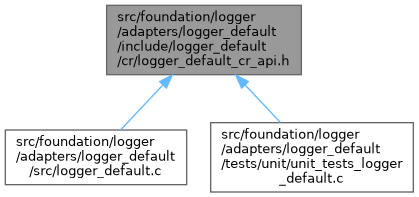

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
logger_default_cfg_t	logger_default_default_cfg (void)
	Return a default configuration for the logger_default adapter.
logger_default_env_t	logger_default_default_env (stream_t *stream, const osal_time_ops_t *time_ops, const osal_mem_ops_t *adapter_mem, const logger_env_t *port_env)
	Build a default environment for the logger_default adapter.
logger_status_t	logger_default_create_logger (logger_t **out, const logger_default_cfg_t *cfg, const logger_default_env_t *env)
	Create a logger instance backed by the logger_default adapter.

Detailed Description

This header exposes the CR-facing entry points used to:

• build default logger_default configuration and environment values,
• create a logger instance backed by the logger_default adapter.

Definition in file logger_default_cr_api.h.

Function Documentation

logger_default_create_logger()

logger_status_t logger_default_create_logger	(	logger_t **	out,
		const logger_default_cfg_t *	cfg,
		const logger_default_env_t *	env
	)

This function allocates and initializes a public logger_t whose backend writes emitted messages to the injected target stream.

Ownership:

• On success, a newly allocated logger is returned in *out.
• The caller becomes responsible for destroying it via logger_destroy().
• On failure, *out is left unchanged.

Parameters

[out]	out	Receives the created logger handle. Must not be NULL.
[in]	cfg	Adapter configuration. Must not be NULL.
[in]	env	Adapter environment containing injected dependencies. Must not be NULL.

Return values

LOGGER_STATUS_OK	Logger successfully created.
LOGGER_STATUS_INVALID	One or more arguments are invalid.
LOGGER_STATUS_OOM	Memory allocation failed.

This function allocates the private logger_default backend, initializes it from the injected configuration and environment, and then wires it into the public logger port through logger_create().

Parameters

[out]	out	Receives the created logger handle. Must not be NULL.
[in]	cfg	Adapter configuration. Must not be NULL.
[in]	env	Adapter environment. Must not be NULL.

Return values

LOGGER_STATUS_OK	Logger successfully created.
LOGGER_STATUS_INVALID	One or more public arguments are invalid.
LOGGER_STATUS_OOM	Adapter-backend allocation failed.

Definition at line 314 of file logger_default.c.

logger_default_default_cfg()

logger_default_cfg_t logger_default_default_cfg

(

void

)

This helper provides a value-initialized baseline configuration that the Composition Root may override.

Returns

A well-formed logger_default_cfg_t.

Return a default configuration for the logger_default adapter.

This helper establishes the default runtime behavior of the adapter.

Returns

A well-formed logger_default_cfg_t.

Definition at line 43 of file logger_default.c.

logger_default_default_env()

logger_default_env_t logger_default_default_env	(	stream_t *	stream,
		const osal_time_ops_t *	time_ops,
		const osal_mem_ops_t *	adapter_mem,
		const logger_env_t *	port_env
	)

This helper packages borrowed dependencies into a value-initialized logger_default_env_t.

The returned environment does not take ownership of any pointer passed as argument.

Parameters

[in]	stream	Borrowed target stream used by the adapter.
[in]	time_ops	Borrowed time operations used for timestamp generation.
[in]	adapter_mem	Borrowed memory operations used for adapter-backend allocation.
[in]	port_env	Borrowed logger port environment.

Returns

A well-formed logger_default_env_t aggregating the provided dependencies.

This helper packages borrowed runtime dependencies into a logger_default_env_t.

Parameters

[in]	stream	Borrowed target stream used by the adapter.
[in]	time_ops	Borrowed time operations used for timestamp generation.
[in]	adapter_mem	Borrowed memory operations used for adapter-backend allocation.
[in]	port_env	Borrowed logger port environment.

Returns

A well-formed logger_default_env_t aggregating the provided dependencies.

Definition at line 70 of file logger_default.c.
